Oxy Heli offer 3 Blade Head System for OXY3 Heli.

We named "Qube" system to help on the designation!

In order to support the Oxy 3 Heli, Oxy Heli in cooperation with Lynx defines after long testing this 3 Blade head system named “Qube”

Simple and stronger deign assure the best efficacy…

Luca Invernizzi says about this new Oxy 3 – 3 Head Blade systems:

….Hard to say which system is the best for the Oxy 3: 2 Head or “Qube”.. we believe after many hours of testing with different configuration , FBL set up and head speed, that the 2 Head system on the Oxy 3 has better performance for pilots that like the hard 3D and the ultimate agility.

The “Qube” system per design, increases the cyclic response, giving a better FBL control and increase the main rotor disc load and the main disc lock effect. These effects support pilots that like a more precise and sedate Oxy 3.

The “Qube” system can handle with incredible performance low Head speed, which can support also who as sport flyer need longer fly time.

Everything depend on your need and your feeling, my personal first feeling was weird, because really different and impossible to compare the “Qube” with the 2 Head System, but after few flights, become a new and enjoyable way to fly my Oxy 3.

- Direct replacement for Oxy 3.

- New and different way to fly your Oxy 3.

- Easy to build and repair in case of crash.

- Increased cyclic response.

- Increased system efficacy at Low Head Speed (3000 rpm)

- Increased reactivity at High Head Speed (4500 rpm)

- Unique look and fly sound.

- System comes with DFC rod and optional Hybrid Pitch Rod System. Hybrid system suggested with Head Speed Lower than 3500 rpm.

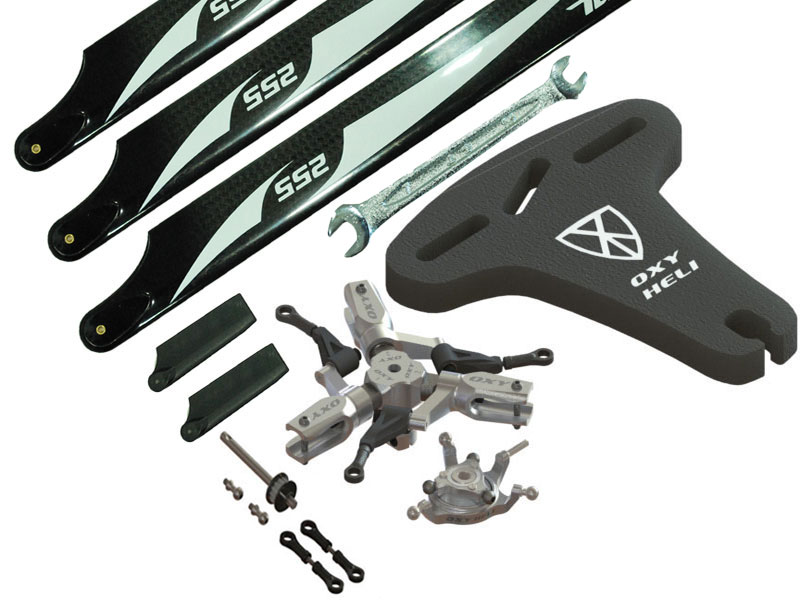

PACKING LIST:

1 x Set of 3 x Main Blade 255 mm Zeal

1 x Oxy 3 - 3 Head System Main Head – Preassembled NOT Ready to fly (follow manual for final assembly)

1 x Oxy 3 - 3 Head System Swashplate

1 x Oxy 3 – 3 Head System Blade Holder Foam

1 Set of 2 x Oxy 3 – 50 mm Tail Blade (suggested for this system)

1 x Oxy 3 – Tail Shaft Pulley 14T (suggested with Head Speed Lower than 3500 rpm)

1 x Oxy 3 – 3 Head System Hybrid Pitch Rod System



Follow user manual for more information of final assembly.



IMPORTANT NOTE:

3 Head System need a different FBL set up compare the 2 Head.

For easy start up, you can easy download and check Luca Invernizzi set up file here below for Brain / Ikon and V Bar.

Oxy 3 – 3 Head System – Brain/Ikon - Luca Invernizzi Set Up.

Oxy 3 – 3 Head System – V Bar - Luca Invernizzi Set Up.



ADVISE FOR EASY SET UP FILE USE:

Present set up file are the raw file for your Brain / ikon or V BAR and was tested by Luca Invernizzi.

Is impossible for us determinate if the present file will work 100% on your system we suggest to operate as follow:

Select FBL system you have and download the set up file. Save in your computer and upload the file direclty in your FBL system.

Recheck and updaee the following options in function of your personal heli set up:

1- Receiver and Bind your system

2- FBL position in your heli

3- 4 x Servo moovement and servo set up

4- Servo zero pitch and tail limit

5- Full functionality of our set up file in your heli system.



If you dont want use our file directly in your heli, just save your current set up and after download check in demo mode our value and copy manually in your system.

For more information about this product please contact us at service@oxyheli.com or service@lynxheli.com
