Specification

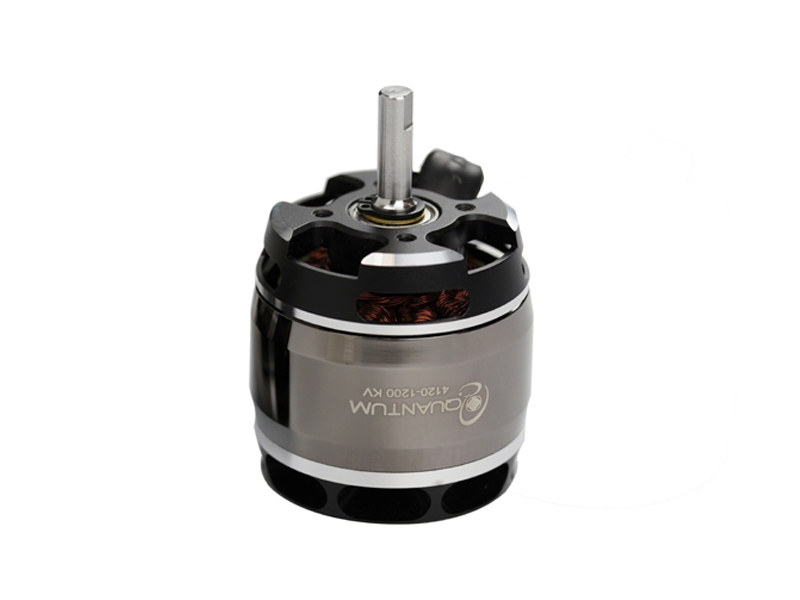

Quantum 4120-1200 series (for 3D fly)
Stator Diameter ............................ 40mm
Stator Thickness ...........................20mm
No. of Magnet Poles ......................8
No. of Stator Arms .........................12
motor winding ------------------------ muti-strand in Delta
Motor Kv ......................................1200 rpm/Volt
No-Load Current (Io) ..................... 3.20 Amps@10v
Motor Resistance (Rm) ..................0.010 Ohms
Max Continuous Current ................80Amps
Max Continuous Power ..................1780 Watts
Max Peak Power .......................... 2200 Watts
Weight .......................................... ..290Grams
Outside Diameter .............................49.8mm
Shaft Diameter .................................8mm to 6mm
Body Length ....................................50.7mm
Overall Shaft Length........................ 72.7mm
