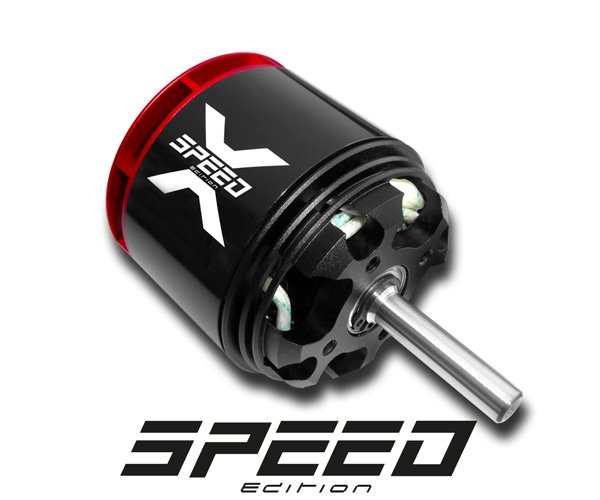

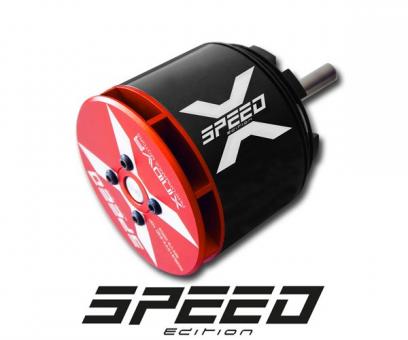

Xnova 50XX-540kv SPEED edition
Xnova brushless high performance outrunner motor designed for 12S and 14S. Your ultimate choice for speed flying.
Slots & Poles 12s10p
Winding T YY
rpm/V 540
Volt (V) 20 | 40 | 45
Io(A) 4.6 | 7.8 | 8.2
Rm (mohm) 6.2| 6.2 | 6.2
Weight (without connector) (g) 642
Body Length (no shaft) mm 61.5
Diameter (mm) 63
Shaft Length (mm) (Details pictures) | 32 | 61
Shaft Dia. (mm) 8 |
Mounting Holes CTC Distance (mm) 30
Mounting Screw M4
Max Eff. Curr. A 123.83 | 228.04 |
Max Eff. 92.71 | 93.28 |
Kt (Nm/A 0.0178
Km (Nm/sqrt(w)) 0.2304
Max Continuous Power(Watts) 8000
Peak Continuous Power(Watts) (5 sec) 13000 (5sec)
