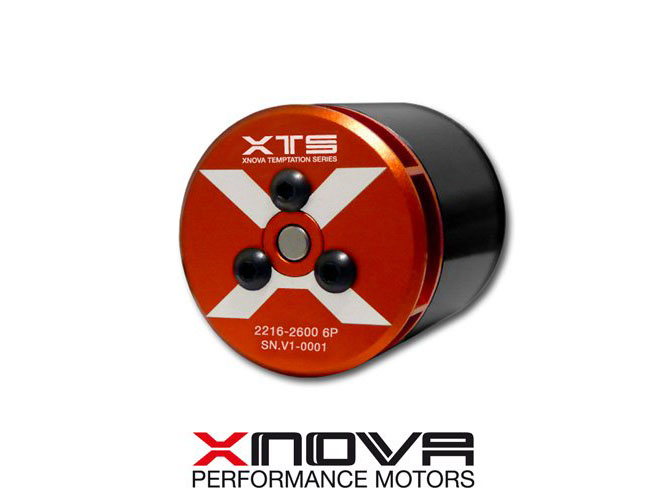

Xnova XTS 2216-2600KV 6P Var. A

6S Power Motor für den OXY3

Designt für extreme 3D Flüge. Speziell entwickelt für den OXY3 bei dem es auf ein optimales Leistungs/Gewichtsverhältnis ankommt.

Designed for extrem 3D , 220-285mm bladesize helicopter where highest power to weight ratio is important.


Slots & Poles 9n6p
Winding T D
rpm/V 2600
Volt (V) 15/ 25
Io(A) 2.7 / 3.5
Rm (mohm) 36
Weight (without connector) (g) 75
Body Length (no shaft) mm 33.8
Diameter (mm) 28.5
Shaft Length (mm) (Details pictures) 14.5
Shaft Dia. (mm) A=4mm to 3.17 on pinion side
Mounting Holes CTC Distance (mm) 16*4
Mounting Screw M3x0.5
Max Eff. Curr. 33.54 / 49.30
Max Eff. 83.90 / 85.80
Kt (Nm/A 0.0037
Km (Nm/sqrt(w)) 0.0194
Max Continuous Power(Watts) 720
Peak Continuous Power(Watts) (2 sec) not provided
Max Continuous Current(Amps) 32
