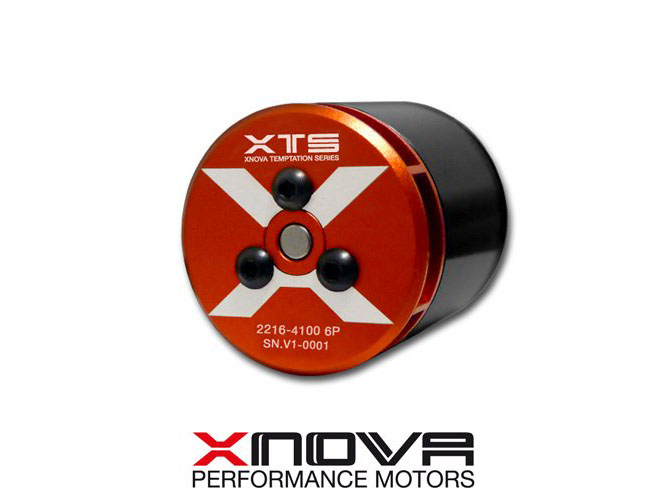

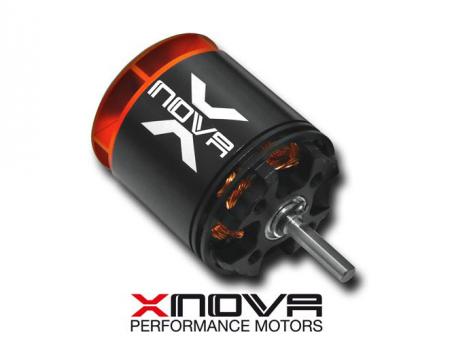

Xnova XTS 2216-4100KV 6P Var. A

Designt für extreme 3D Flüge. Speziell entwickelt für den OXY3 bei dem es auf ein optimales Leistungs/Gewichtsverhältnis ankommt.

Designed for extrem 3D , 220-285mm bladesize helicopter where highest power to weight ratio is important.


Slots & Poles 9n6p
Winding T D
rpm/V 4100
Volt (V) 10/ 15
Io(A) 4.2 / 5.8
Rm (mohm) 15
Weight (without connector) (g) 77
Body Length (no shaft) mm 33.8
Diameter (mm) 28.5

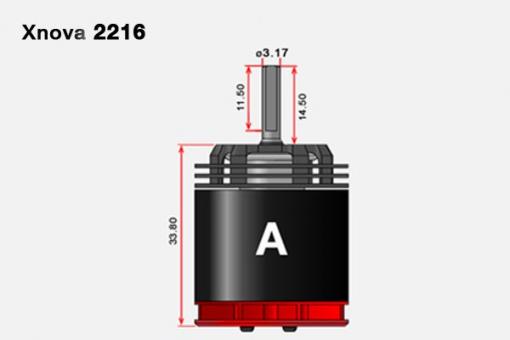

Shaft Length (mm) (Details pictures) 14.5
Shaft Dia. (mm) A=4mm to 3.17 on pinion side
Mounting Holes CTC Distance (mm) 16*4
Mounting Screw M3x0.5
Max Eff. Curr. 52.92 / 76.16
Max Eff. 84.13/ 84.77
Kt (Nm/A 0.0023
Km (Nm/sqrt(w)) 0.0190
Max Continuous Power(Watts) 580
Peak Continuous Power(Watts) (2 sec) not provided
Max Continuous Current(Amps) 36
