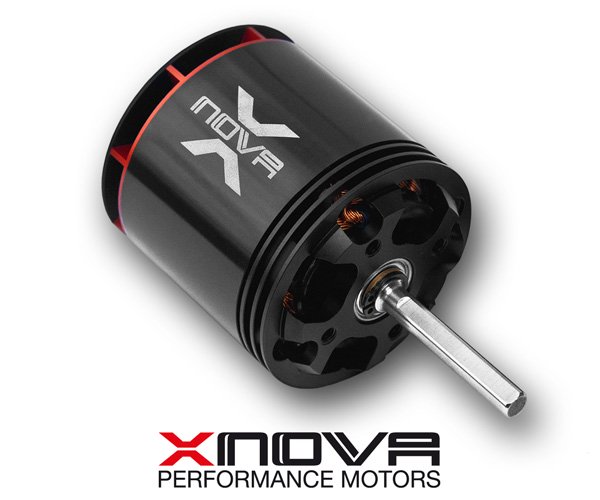

X-NOVA 4530-525 4+5 YY
Designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important.Variante D Protos Max
Slots & Poles 12n10p
Winding T 4+5 YY with 1.5mm thick wire
rpm/V 525
Volt (V) 10 | 20 | 30 | 40
Io(A) 1.7 | 2.3 | 3.2 | 4
Rm (mohm) 9 | 9 | 9 | 9
Weight (without connector) (g) 535
Body Length (no shaft) mm 60.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) | 38 | 27
Shaft Dia. (mm) 6 | 8 | 10
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 43.46 | 71.49 | 103.28 | 133.33
Max Eff. 92.18 | 93.57 | 93.80 | 94.00
Kt (Nm/A 0.0182
Km (Nm/sqrt(w)) 0.1917
Max Continuous Power(Watts) 5100
Peak Continuous Power(Watts) (5 sec) 11000 (2sec)
