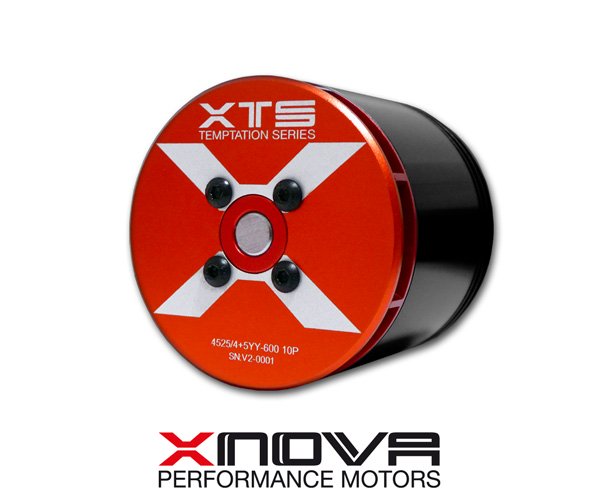

Xnova XTS 4525-600kv 4+5YY

Xnova brushless high performance outrunner motor designed for extrem 3D, 600-660mm bladesize helicopter where highest power to weight ratio is important. It is a extreme power plant specially developed for the new SAB-black-thunder Goblin 650 helicopter. The 600KV version is a insane powerhouse and Tareq Alsaadis choice for the Goblin 650 Black_Thunder with 2 blade setup.

Variante A

Slots & Poles 12n10p
Winding T YY with thick wire
rpm/V 600
Volt (V) 20 | 30 | 40
Io(A) 3.8 | 5.1 |6.1
Rm (mohm) 7.3 | 7.3| 7.3
Weight (without connector) (g) 485
Body Length (no shaft) mm 55.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) | 36|61
Shaft Dia. (mm) 6 | 8
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 102.03 | 144.77 | 182.82 |
Max Eff. 92.55| 92.95 | 93.33 |
Kt (Nm/A 0.0159
Km (Nm/sqrt(w)) 0.1863
Max Continuous Power(Watts) 4600
Peak Continuous Power(Watts) (5 sec) 10000 (2sec)
Max cont. current (A) 110
