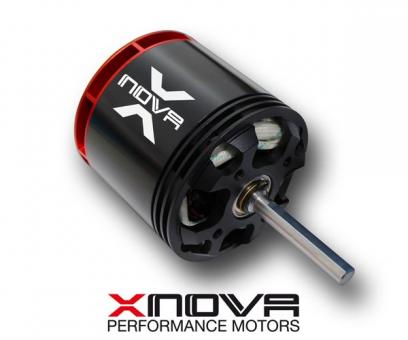

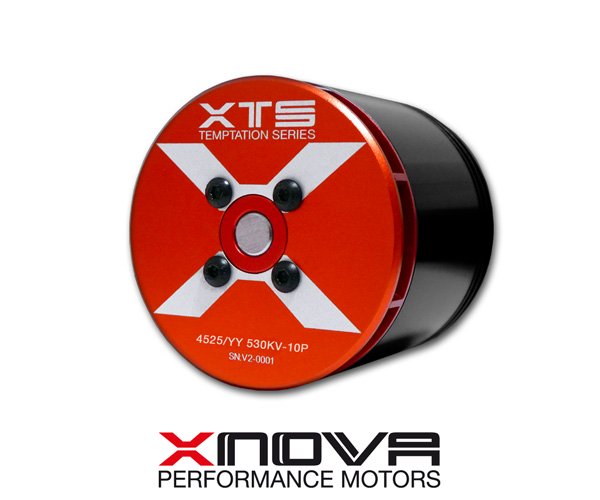

Xnova XTS 4525-YY-530kv Var.F
Designed for extrem 3D 630-710mm blade size helicopter where highest power to weight ratio is important.
Slots & Poles 12n10p
Winding T YY with thick wire
rpm/V 530
Volt (V) 20 | 30 | 40
Io(A) 3.4 | 4.5 |5.6
Rm (mohm) 9.5 | 9.5| 9.5
Weight (without connector) (g) 488
Body Length (no shaft) mm 55.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) 36 / 56 / 60
Shaft Dia. (mm) 6 | 8
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 82.08 | 116.53 | 150.79 |
Max Eff. 92.20| 92.62 | 92.84 |
Kt (Nm/A 0.0180
Km (Nm/sqrt(w)) 0.1849
Max Continuous Power(Watts) 4500
Peak Continuous Power(Watts) (5 sec) 10000 (2sec)
Max cont. current (A) 95
