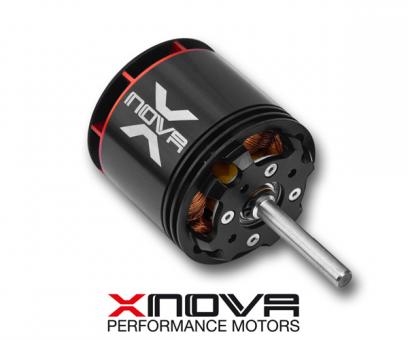

Xnova XTS 4535-520 4+4 YY (1,6mm thick Wire)
Designed for extrem 3D 700-800mm helicopter where highest power to weight ratio is important.
Variante C
Slots & Poles 12n10p
Winding T 4+4 YY with 1.6mm thick wire
rpm/V 510
Volt (V) 10 | 20 | 30 | 40 | 50 | 55
Io(A) 2.3 | 3.2 | 4.2 | 5.2 | 5.9 | 6.7
Rm (mohm) 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5
Weight (without connector) (g) 624
Body Length (no shaft) mm 65.5
Diameter (mm) 55.7
Shaft Length (mm) (Details pictures) | 41 | 27
Shaft Dia. (mm) 6 | 8 | 10
Mounting Holes CTC Distance (mm) 30
Mounting Screw 4x07
Max Eff. Curr. 55.38 | 92.38 | 129.61 | 166.53 | 198.33 | 221.66
Max Eff. 91.69 |93.07 | 93.52 | 93.76 | 94.05 | 93.95
Kt (Nm/A 0.0187
Km (Nm/sqrt(w)) 0.2162
Max Continuous Power(Watts) 6500
Peak Continuous Power(Watts) (5 sec) 13000 (2sec)
Max cont. current (A) 180
