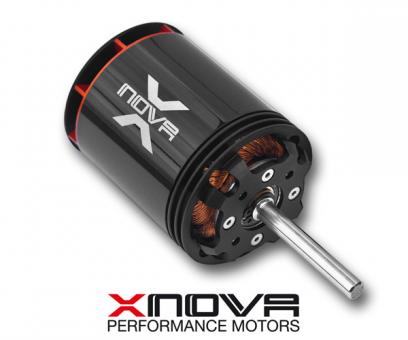

Lightning 4035-400KV 2.5YVar.A
Xnova brushless high performance outrunner motor for 700 or larger size helicopters for 3d flying on 12s or sport flying on 10s.
Slots & Poles 24n8p
Winding T 2.5Y
rpm/V 400
Volt (V) 10 | 20 | 30
Io(A) 1 | 1.3 | 1.7
Rm (mohm) 20 | 20 | 20
Weight (without connector) (g) 473
Body Length (no shaft) mm 65.75
Diameter (mm) 49.5

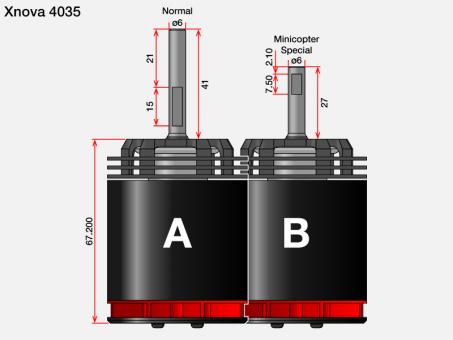

Shaft Length (mm) (Details pictures) | 41 | 27
Shaft Dia. (mm) 6
Mounting Holes CTC Distance (mm) 25 | 30
Mounting Screw 2 x M3 | 2 x M4
Max Eff. Curr. 22.36 | 36.06 | 50.50
Max Eff. 91.06 | 92.79 | 93.27
Kt (Nm/A 0.0199
Km (Nm/sqrt(w)) 0.1407
Max Continuous Power(Watts) 3800
Peak Continuous Power(Watts) (5 sec) 5600
Max cont. current (A) 85
