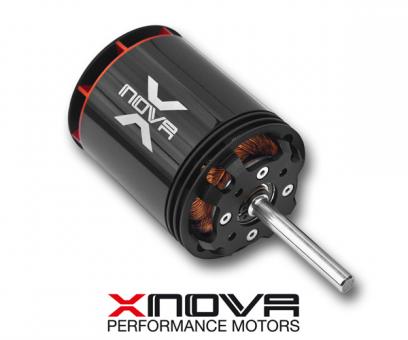

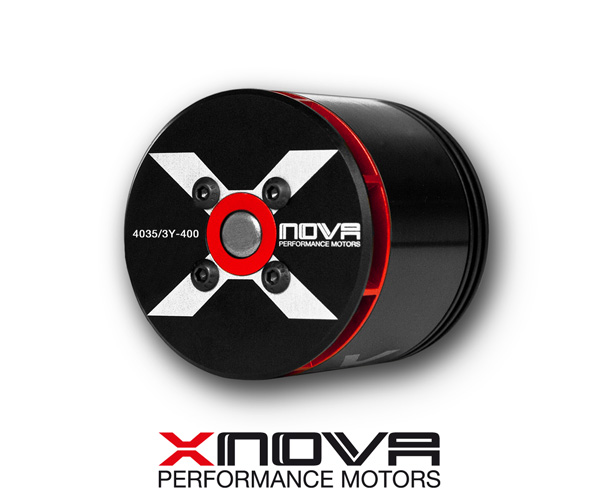

Xnova 4035-400KV 3YVar.B
Slots & Poles 24n8p
Winding T 3Y
rpm/V 400
Volt (V) 10 | 20 | 30
Io(A) 0.8 | 1 | 1.2
Rm (mohm) 23 | 23 | 23
Weight (without connector) (g) 483
Body Length (no shaft) mm 65.75
Diameter (mm) 49.5

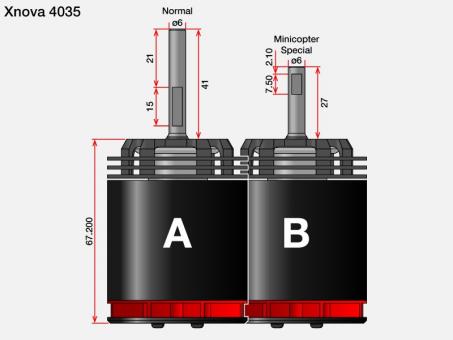

Shaft Length (mm) (Details pictures) | 41 | 27
Shaft Dia. (mm) 6
Mounting Holes CTC Distance (mm) 25 | 30
Mounting Screw 2 x M3 | 2 x M4
Max Eff. Curr. 18.65 | 29.49 | 39.56
Max Eff. 91.42 | 93.22 | 93.93
Kt (Nm/A 239
Km (Nm/sqrt(w)) 0.1574
Max Continuous Power(Watts) 3500
Peak Continuous Power(Watts) (5 sec) 5300
Max cont. current (A) 78
