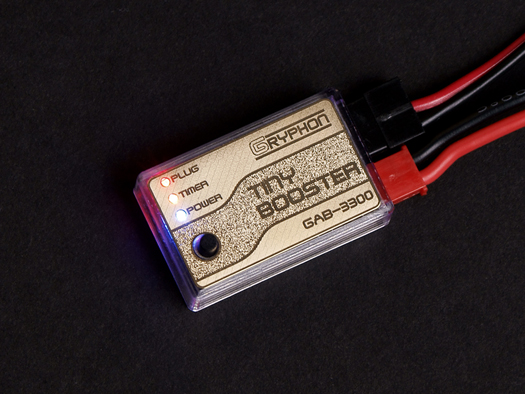

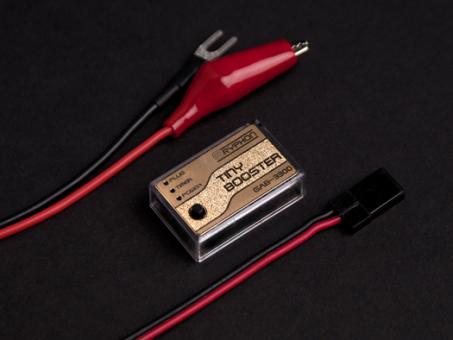

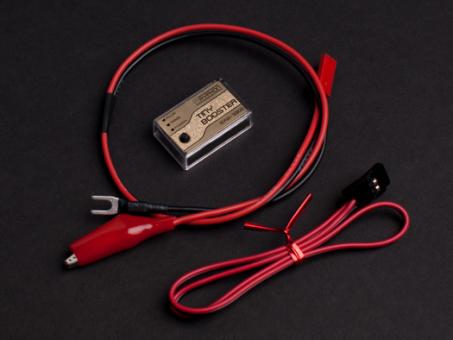

The Tiny Booster GAB-3300 is a light and compact size glow plug ignitor for Nitro Engines, equipped with a built-in push button and timer function for stand alone usage.
It is also able to operate automatically with the use of a "trigger" optional cable linked to a Hall sensor and also with a Y cable linked to the Hall Sensor plug of standard Nitro Engines Governors / FBL built in Governors.
■ TECHNICAL SPECIFICATIONS
Input voltage : 3.2V~16V(1~3 LiPo Cells)
Timer : 12sec Current draw : 0.75A @ 7.4V
0.95A @ 6.0V
1.30A @ 5.2V
Size : 8mm(H) x 17mm(W) x 27mm(L)
Weight : 4g (Main unit)
15g (Cable included)
■ OPERATION INSTRUCTIONS
- You can feed power to the Tiny Booster with an external battery ( Lipo 2S 450mAh for example ) to avoid using a receiver channel port, or feed it with an available receiver channel port
(Do not use the signal wire in that case).
- An automatic fuse circuit will prevent circuit loss and protection of the receiver battery / power supply in case the glow plug would be defective or in case of short circuit on the glow plug wire or terminals.
- An overheating protection circuit will shut down the Tiny Booster in case the circuit temperature gets too high (for example with too many repeated attemps to start a faulty engine / wrong fuel line).
Once the unit has cooled down, normal operation can be processed.
- The 3 different colors leds will indicate the state of the Tiny Booster.
RED LED : Glow Plug Ignition
YELLOW LED : Timer (12sec)
BLUE LED : Power on
■ Smart Cable Operation (Sold Separatly)
When using the genuine " Smart Cable" from Gryphon, simply plug it to the Hall Sensor of your nitro engine, or to the hall sensor plugof your Nitro Governor / FBL Governor if it has built in governor with a Y cable.
The "Smart Cable" will pick up the Hall Sensor signal and will activate the ignition at a pre determinated rotation speed / starter speed and allow the engine to start. The built in timer will prevent continous ignition of the glow plug after the enging is effectively started.
