MKS Servo HV 737 HV Digital Servo
High Speed Servo for Glider Tail / Airplane / Jet / Electric Plan

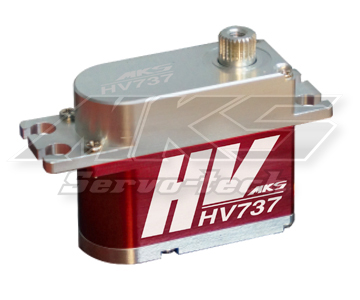

MKS HV737
- 12 x 20 mm coreless motor, High efficient, More durable.
- 9mm VR, Ultrahigh-resolution.
- New type gear structure, Tiny backlash, High durable.
Torque: 8.3 kg-cm (6.0V) / 9.1 kg-cm (7.4V) / 10.2 kg-cm (8.2V)
Speed: 0.12 s (6.0V) / 0.10 s (7.4V) / 0.09 s (8.2V)
Weight: 38.55 g
Dimension:35.5 x 15 x 28.5 mm
Working Voltage: 5.5 ~ 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520μs / 333hz
Dead Band:0.001 ms (Default)
Bearing:2BB
Motor:Coreless Motor
Gear:Chrome-Titanium alloy gear
Electric current draw: 2.6A max.(8.2V) │ 2.4A max.(7.4V) │ 2.0A max (6.0V)
Wire Length:29.5 cm
