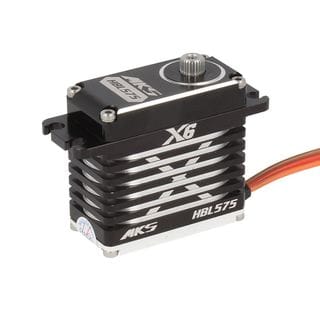

MKS Servo HBL 575 HV Digital brushless servo
Perfect Servo for 1/10, 1/8 scale buggy.
High speed, incredible efficiency, and low power consumption.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
Extremely strong Chrome-Titanium alloy gear.
Specifications:
Torque: 18 kg/cm (6.0V) - 22 kg/cm (7.4V) - 24 kg/cm (8.2V)
Speed: 0.082s (6.0V) - 0.066s (7.4V) - 0.06s (8.2V)
Weight: 71.4 g
Dimension: 40 x 20 x 38.5 mm
Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.0008 ms
Bearing: 2BB
Motor: Japan High Quality Brushless Motor
Gear: Chrome-Titanium alloy gear
