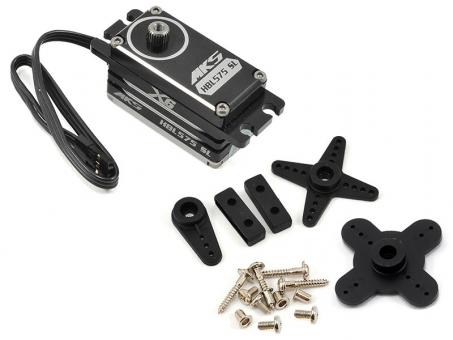

MKS Servo HBL 575SL HV Digital Servo brushless

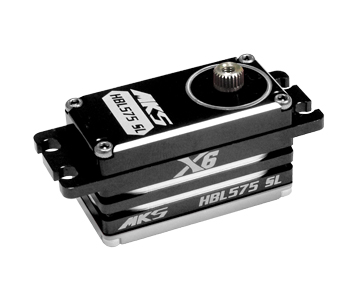

HBL575-SL Low Profile Servo
Combining full metal gears, case and amazing speed.
CNC Machined Metal Case Design for Exceptional Cooling.
HD 4096 Resolution, 0.008ms Dead Band.
Superior Holding Torque, Japanese Brushless Motor.
High speed, incredible efficiency, and low power consumption than comparable servos.
Specifications:
Torque: 10 kg/cm (4.8V) - 13.3 kg/cm (6.0V) - 16.8 kg/cm (7.4V)
Speed: 0.10s (4.8V) - 0.08s (6.0V) - 0.07s (7.4V)
Weight: 53.51 g

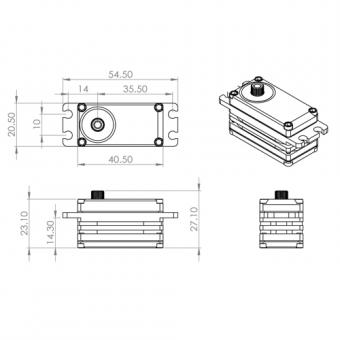

Dimension: 40 x 20 x 23.1 mm
Working Voltage: 3.5 - 8.4 V DC Volts (2S Lipo un-regulated)
Working frequency: 1520µs / 333Hz
Dead Band: 0.0008 ms
Bearing: 2BB
Motor: Japan High Quality Brushless Motor
Gear: Chrome-Titanium alloy gear
